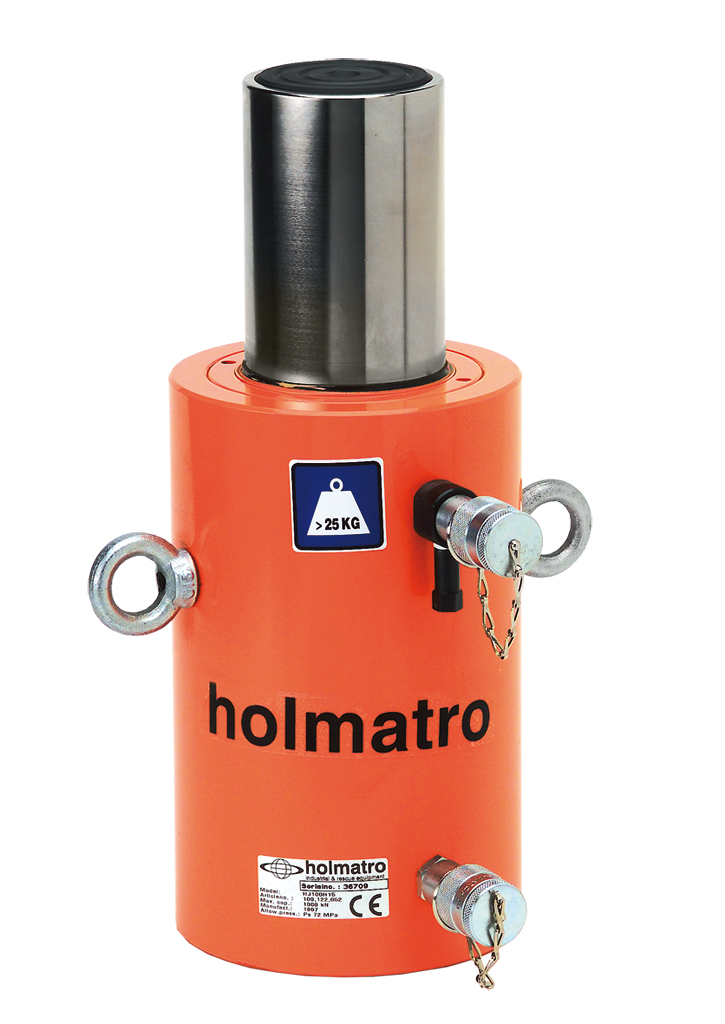

Cylinder HJ 100 H 5
About the Cylinder HJ 100 H 5
Specifications
Details
Article number
100.122.009
Basic specifications
model
HJ 100 H 5
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
Performance
tonnage
100 t
tonnage
220462 lb
stroke
50 mm
stroke
2 in
closed height
170 mm
closed height
6.7 in
capacity
1029.3 kN / 105 t / 1029.3 / 105 (kN/t)
capacity
231396 lbf
effective pressure area (press)
143 cm2
effective pressure area (press)
22.2 sq. in.
effective pressure area (retract)
56.6 cm2
effective pressure area (retract)
8.8 sq. in.
General specifications
required oil content (effective)
433 cc
required oil content (effective)
14.6 oz
required oil content (press)
716 cc
required oil content (press)
24.2 oz
required oil content (retract)
283 cc
required oil content (retract)
9.6 oz
acting type
double
return type
hydraulic
material
steel
cylinder type
high tonnage
connection
A 118
Dimensions, weight and temperature
weight, ready for use
29 kg
weight, ready for use
63.9 lb
Technical drawing dimensions
dimension A
163 mm
dimension A
6.4 in
dimension B
178 mm
dimension B
7 in
dimension C
105 mm
dimension C
4.1 in
dimension D1
70 mm
dimension D1
2.8 in
dimension D2
85 mm
dimension D2
3.3 in
dimension E
27 mm
dimension E
1.1 in
dimension F
163 mm
dimension F
6.4 in
I type
I-1
dimension P
52 mm
dimension P
2 in
Technical Drawing
Technical Drawing Of Cylinder – Hydraulic Return
Features
Flat saddle; prevents damage to the plunger, easy to replace with tilting saddle
Protected against over pressure on return side; A418 valve
