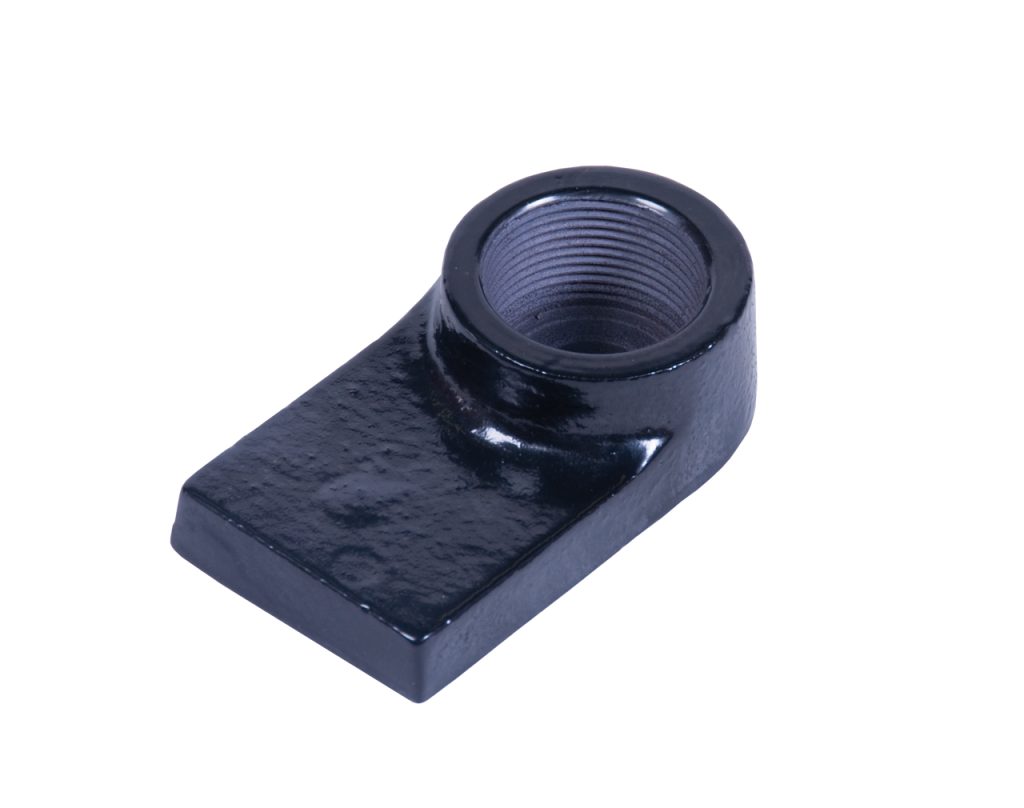

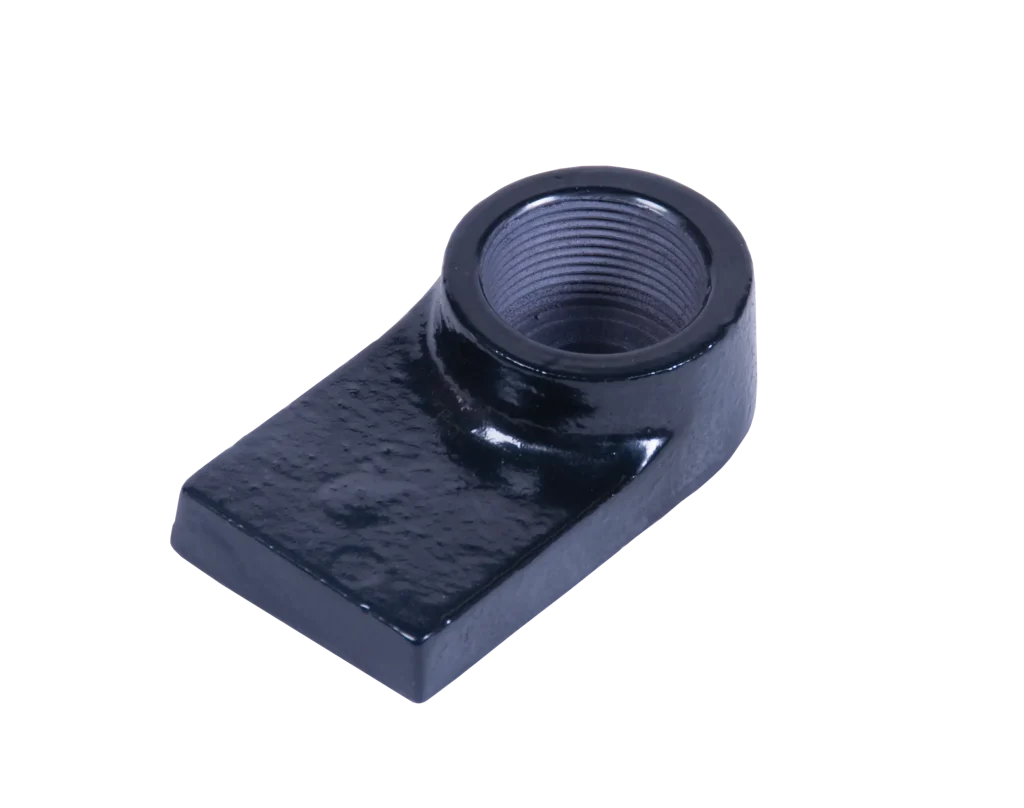

Plunger Toe HGC 10

Plunger toe • Suitable for HGC 10 and HCJ 10 cylinders • Thread size: 1¼" NPT female • Max. working pressure: 144 bar
Request Quotation

About the Plunger Toe HGC 10

Specifications

Choose unit system
Details
Article number
100.002.991
Basic specifications
model
HGC 10
max. working pressure
2089 psi
max. working pressure
144 / 14.4 (bar/MPa)
Dimensions, weight and temperature
weight, ready for use
0.75 kg
weight, ready for use
1.7 lb
dimensions (AxBxC)
110 x 60 x 31.5 mm
dimensions (AxBxC)
4.3 x 2.4 x 1.2 in

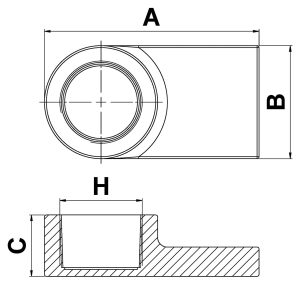

Technical drawing dimensions
dimension A
10 mm
dimension A
0.4 in
dimension B
60 mm
dimension B
2.4 in
dimension B2
31 mm
dimension B2
1.2 in
dimension H
1¼" NPT threadsize

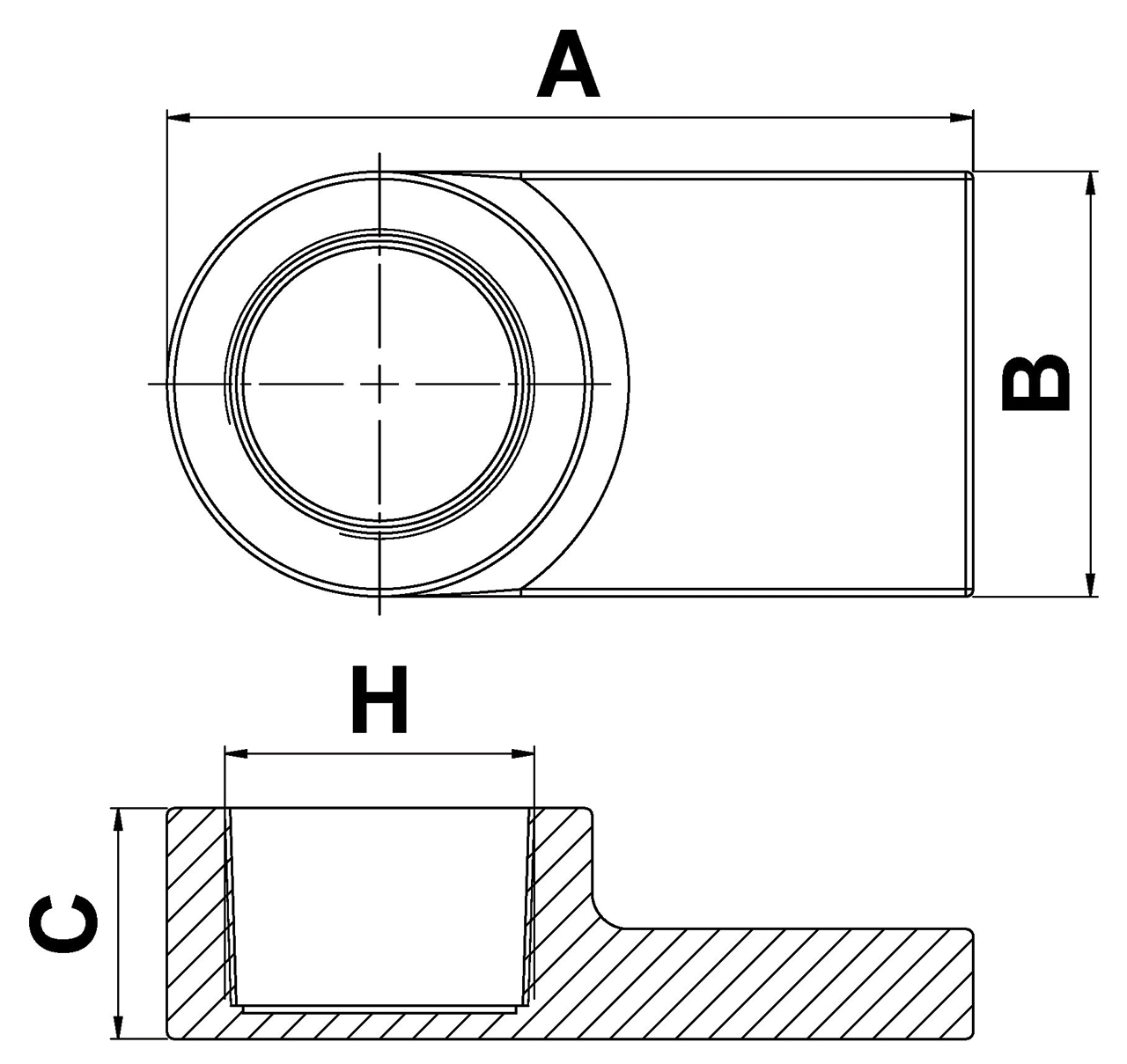

Technical Drawing

Plunger Toe 1 1/4

Downloads

HGC 10, Spec sheet, A4 metric

HGC 10, Spec sheet, Letter imperial
