About the Cutter CU 4007 C
Specifications
Details
Article number
150.012.232
Basic specifications
model
CU 4007 C
equipped with (connector type)
CORE
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
Performance
max. cutting opening
59 mm
max. cutting opening
2.3 in
theoretical cutting force
49458 lbf
theoretical cutting force
220 / 22.4 (kN/t)
General specifications
NCT
no
Dimensions, weight and temperature
dimensions (AxBxC)
377 x 131 x 72 mm
dimensions (AxBxC)
14.8 x 5.2 x 2.8 in
weight (without hose)
3.8 kg
weight (without hose)
8.4 lb
weight, ready for use (EN13204:2025 & NFPA1960)
4.8 kg
weight, ready for use (EN13204:2025 & NFPA1960)
10.6 lb
Norms
EN 13204 classification
AC59B-3.8
NFPA 1936, cutting capacity
A4 B3 C2 D4 E4
NFPA 1960, cutting capacity
√
EN 13204 cutting capacity
1C 2C 3C
EN 13204 2025 Ed classification
CU1-59B
Cutting performance
round bar (S235 acc. to EN 13204)
20 mm
round bar (S235 acc. to EN 13204)
0.8 in
Technical Drawing

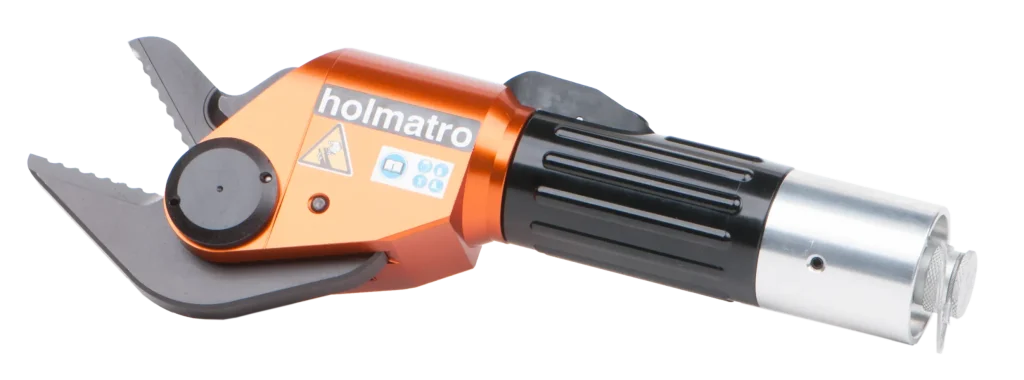

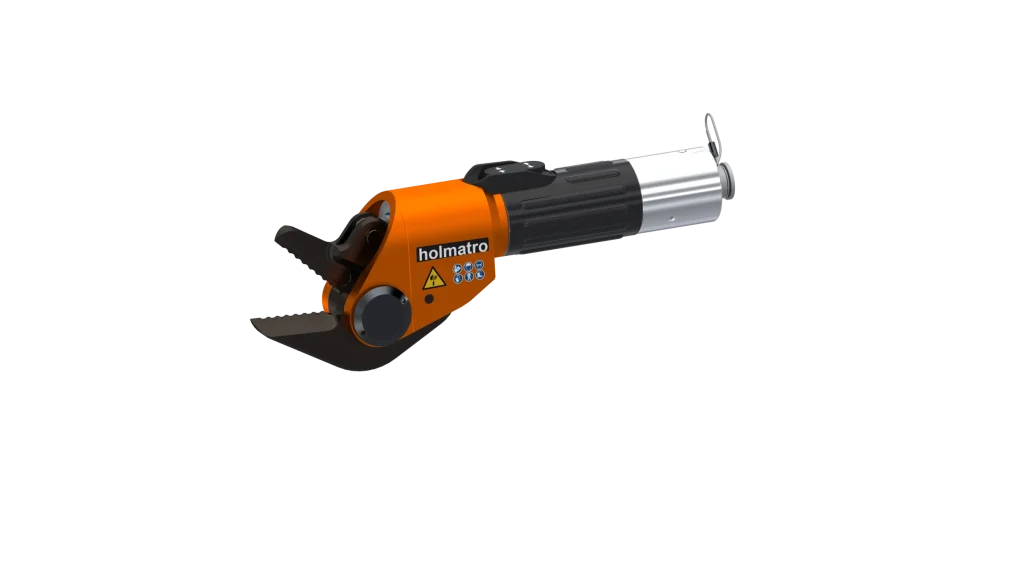

Cutter CU 4007 C
Features
Compact, lightweight, versatile cutter
- Easy to use in confined spaces
Push-button control
- Easy one-handed positioning and operation
Blades optimized for both round and flat profiles

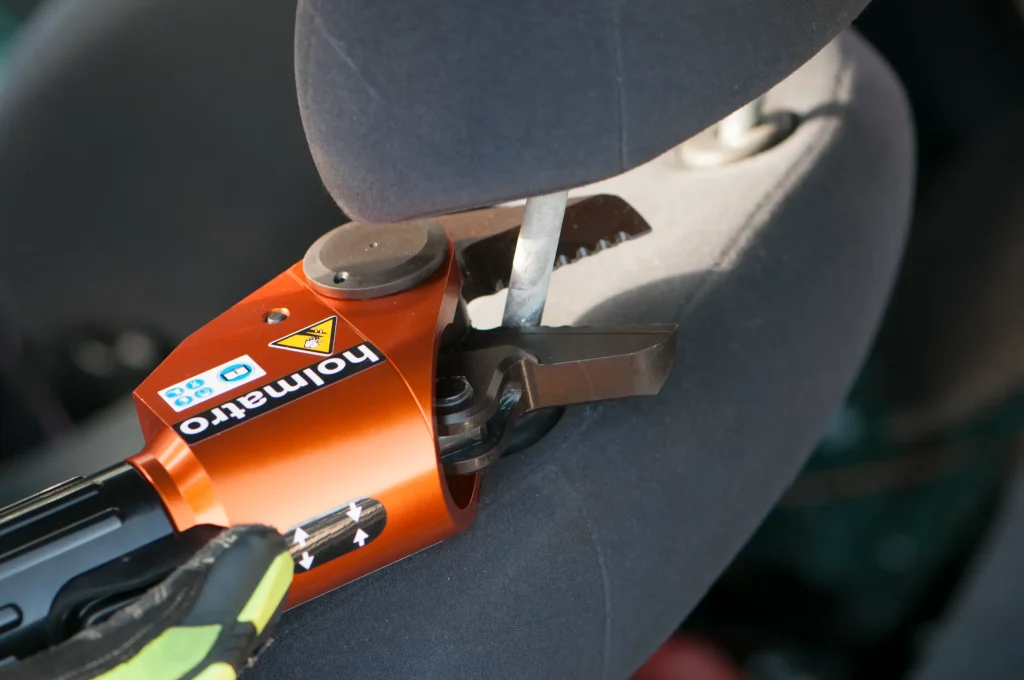

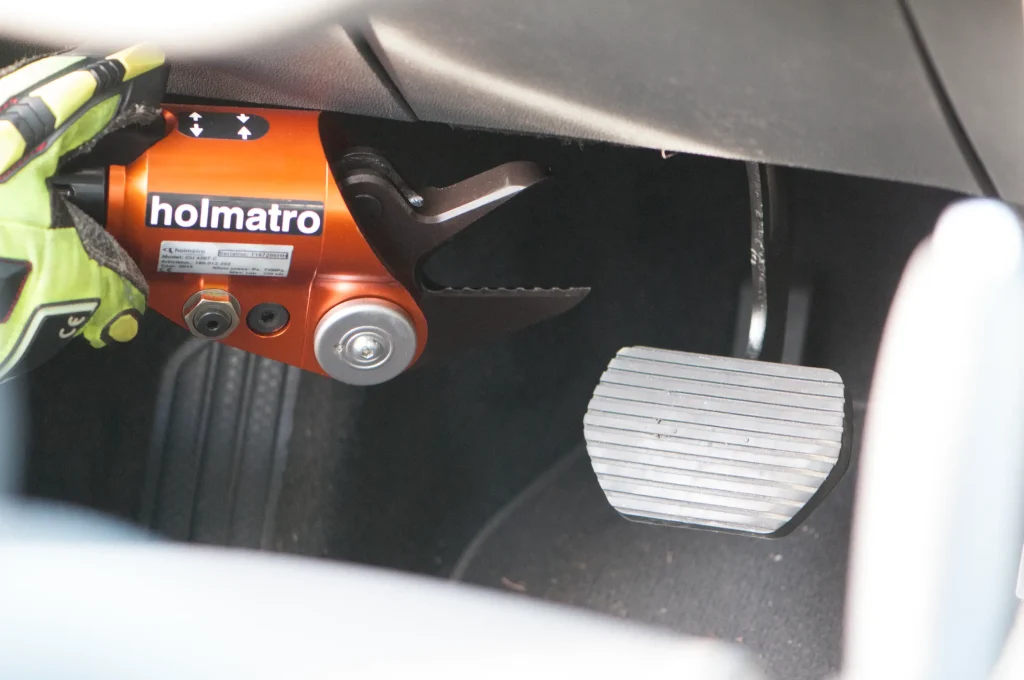

- Suitable for many different applications, e.g. cutting car pedals, head restraints and (in USAR operations) re-bar
i-Bolt Technology included
- Much flatter design for better access into narrow spaces
- Squeezes blades together more tightly, resulting in less blade separation and improved cutting performance
- Stainless steel cover protects bolt
Perfect balance
- Easy to pick up and to carry
For both left- and right-handed operators
- Easy operation in any position
