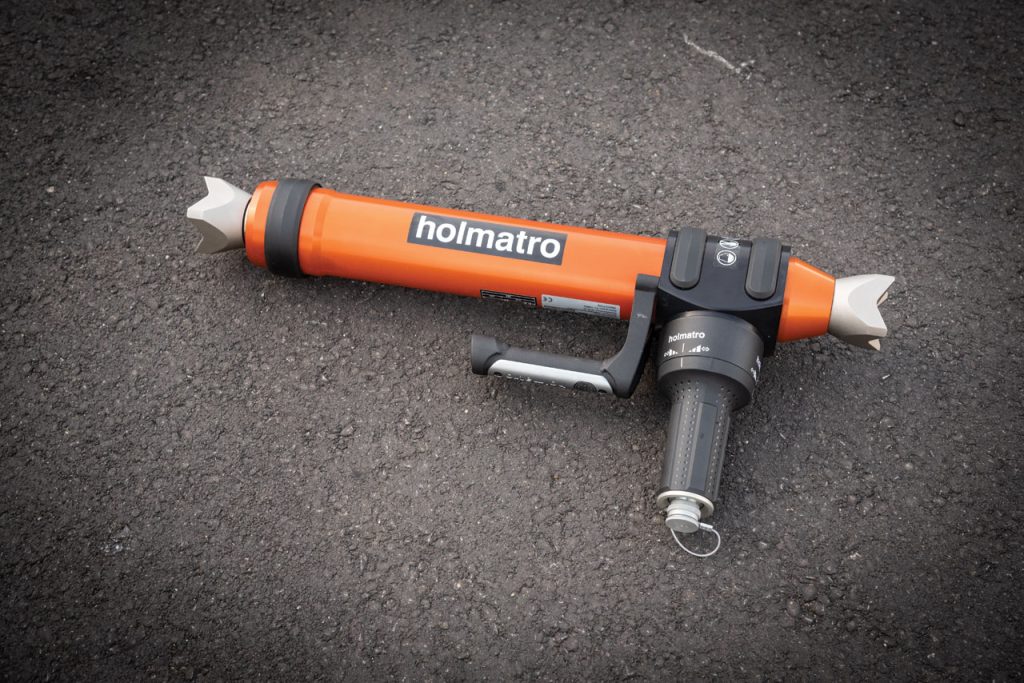

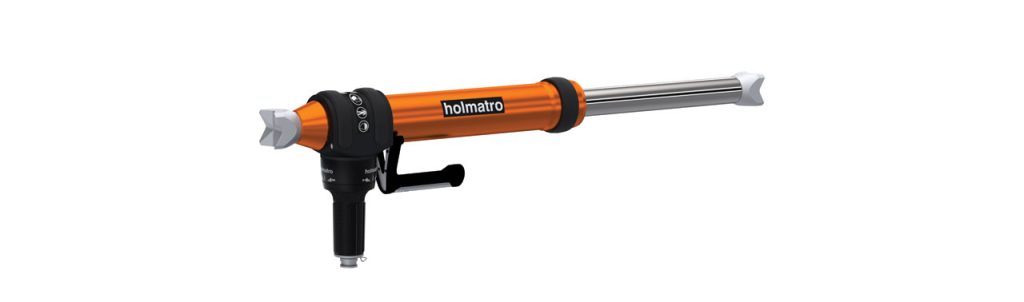

About the Ram RA 5331
Specifications
Details
Article number
151.000.391
Basic specifications
model
RA 5331
equipped with (connector type)
CORE
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
Performance
spreading force over full stroke
33721 lbf
spreading / pulling stroke
340 mm
spreading / pulling stroke
13.4 in
retracted length
615 mm
retracted length
24.2 in
extended length
955 mm
extended length
37.6 in
spreading force over full stroke
150 / 15.3 (kN/t)
pulling force over full stroke
28 / 2.9 (kN/t)
max. spreading force, 1st section (NFPA 1936, HSF)
33721 lbf
max. spreading force, 1st section (NFPA 1936, HSF)
150 / 15.3 (kN/t)
General specifications
number of plungers
1
Dimensions, weight and temperature
dimensions (AxBxC)
280 x 105 x 615 mm
dimensions (AxBxC)
11 x 4.1 x 24.2 in
weight (without hose)
12.5 kg
weight (without hose)
27.6 lb
weight, ready for use (EN13204:2025 & NFPA1960)
13.8 kg
weight, ready for use (EN13204:2025 & NFPA1960)
30.4 lb
Norms
EN 13204 classification
R150/340-12.5
NFPA 1960 compliant
yes
EN 13204 compliant
yes
NFPA 1960, HPF
6295 lbf
NFPA 1960, HPF
28 / 2.9 (kN/t)
NFPA 1960, HSF
33721 lbf
NFPA 1960, HSF
150 / 15.3 (kN/t)
NFPA 1960, LPF
6295 lbf
NFPA 1960, LPF
28 / 2.9 (kN/t)
NFPA 1960, LSF
33721 lbf
NFPA 1960, LSF
150 / 15.3 (kN/t)
EN 13204 2025 Ed classification
RA-150/340
AMCA 240-22 certified
6000 cycles

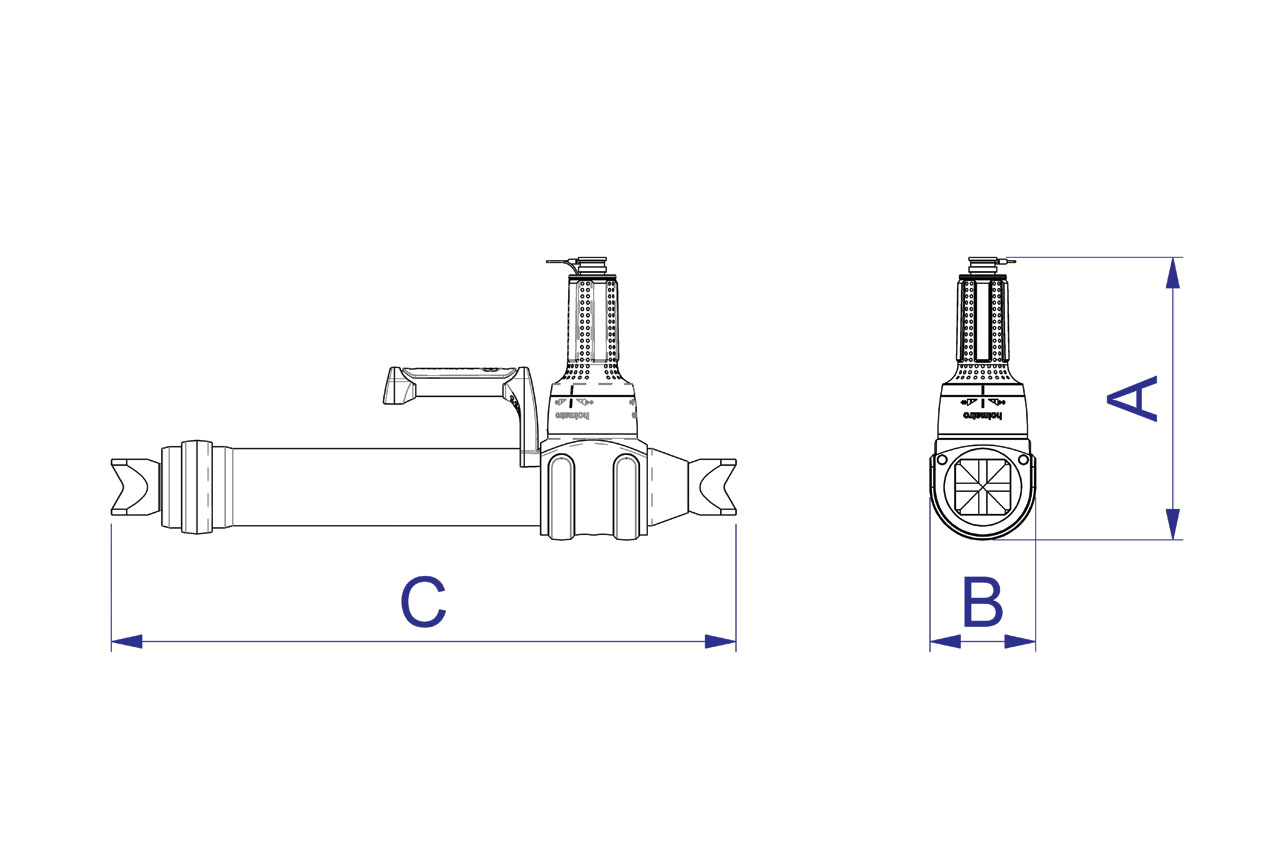

Technical Drawing
Technical Drawing RA 5331
Features
Optimal performance to weight ratio
- High spreading force compared to tool weight
Snap-lock system for accessories
- Changing of accessories within seconds, without the use of tools
Rotating cross heads with improved, precision cast profile
- Easy positioning and perfect grip in any situation
Ergonomic carrying handle
- New handle design for easy carrying
- Mounted parallel to tool to limit dimensions
Integrated LED lighting
- Illumination of both the plunger and the base side of the ram (4 LED lights in total)
- You can start right away, both during the day and at night, without working in your own shadow

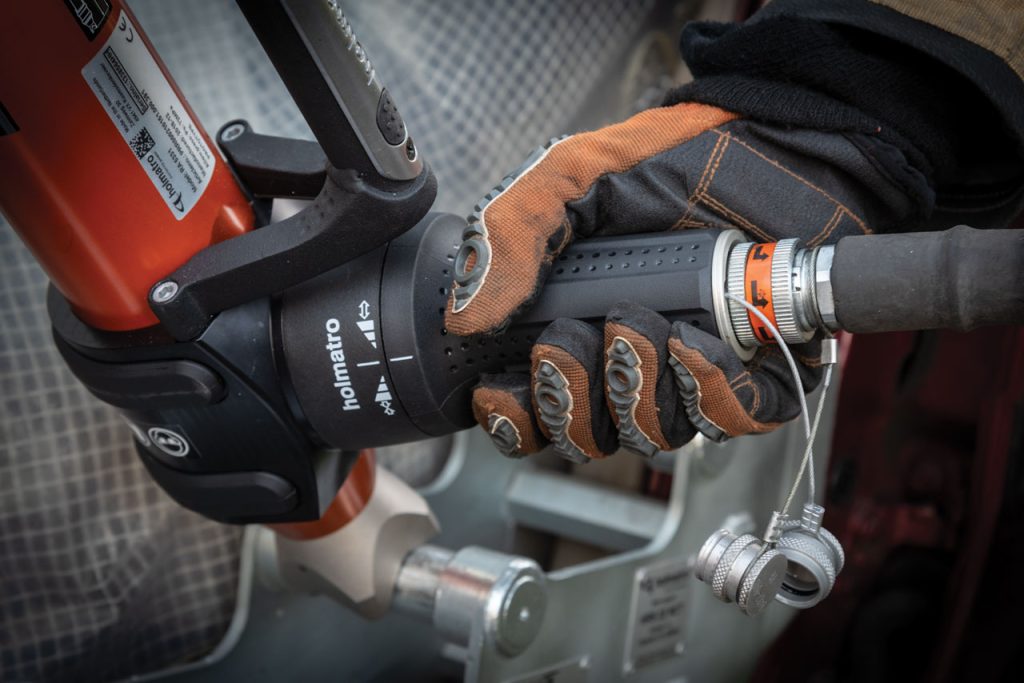

New control handle
- Improved ergonomic design, offering better grip for optimal tool control
Protective strips on housing
- To protect the tool from damage when putting it on the ground
