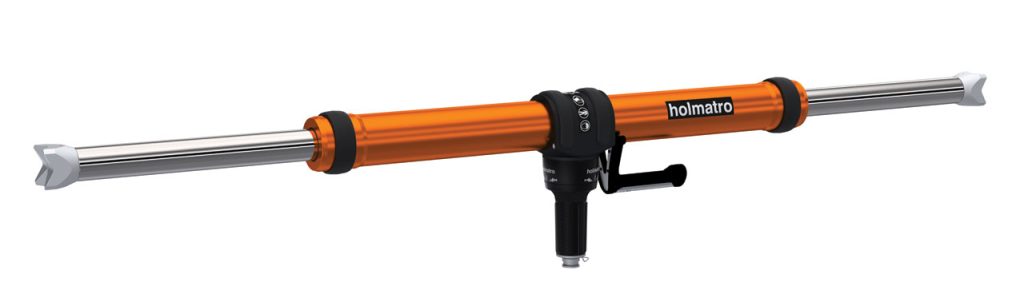

About the Ram RA 5332
Specifications
Details
Article number
151.000.390
Basic specifications
model
RA 5332
equipped with (connector type)
CORE
max. working pressure
10443 psi
max. working pressure
720 / 72 (bar/Mpa)
Performance
spreading force over full stroke
33721 lbf
spreading / pulling stroke
680 mm
spreading / pulling stroke
26.8 in
retracted length
950 mm
retracted length
37.4 in
extended length
1630 mm
extended length
64.2 in
spreading force over full stroke
150 / 15.3 (kN/t)
pulling force over full stroke
28 / 2.9 (kN/t)
General specifications
number of plungers
2
Dimensions, weight and temperature
dimensions (AxBxC)
280 x 105 x 950 mm
dimensions (AxBxC)
11 x 4.1 x 37.4 in
weight (without hose)
19.3 kg
weight (without hose)
42.5 lb
weight, ready for use (EN13204:2025 & NFPA1960)
20.6 kg
weight, ready for use (EN13204:2025 & NFPA1960)
45.4 lb
Norms
EN 13204 classification
R150/680-19.3
NFPA 1960 compliant
yes
EN 13204 compliant
yes
NFPA 1960, HPF
6295 lbf
NFPA 1960, HPF
28 / 2.9 (kN/t)
NFPA 1960, HSF
33721 lbf
NFPA 1960, HSF
150 / 15.3 (kN/t)
NFPA 1960, LPF
6295 lbf
NFPA 1960, LPF
28 / 2.9 (kN/t)
NFPA 1960, LSF
33721 lbf
NFPA 1960, LSF
150 / 15.3 (kN/t)
EN 13204 2025 Ed classification
RA-150/680
AMCA 240-22 certified
6000 cycles

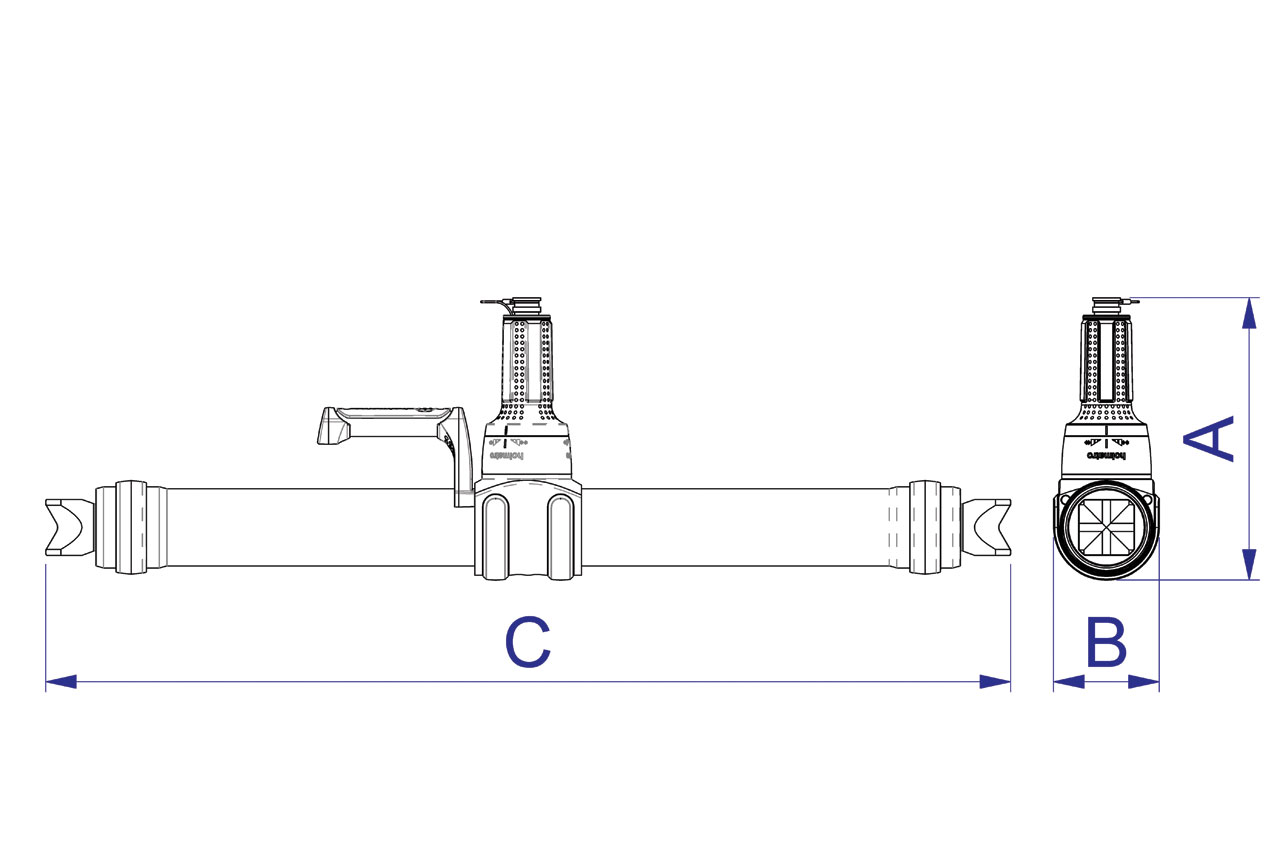

Technical Drawing
Technical Drawing RA 5332
Features
Optimal performance to weight ratio
- High spreading force compared to tool weight

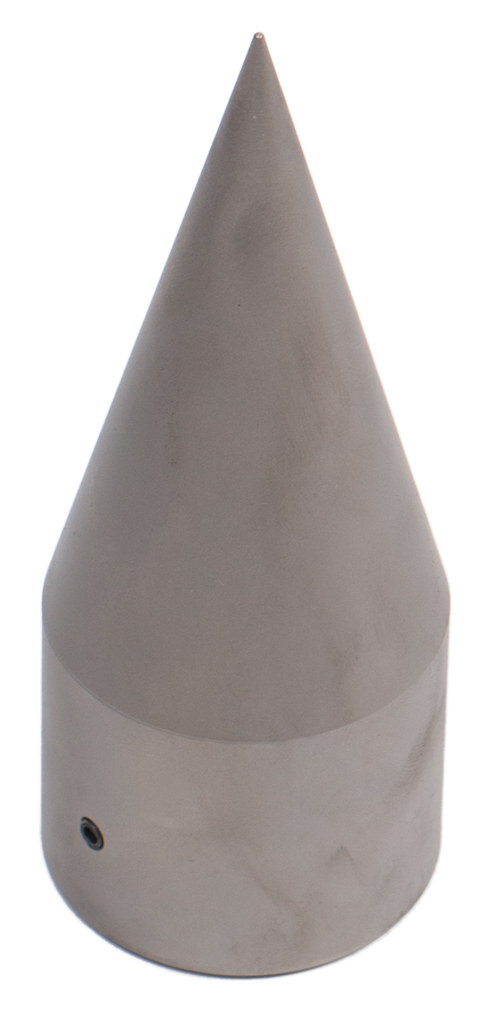

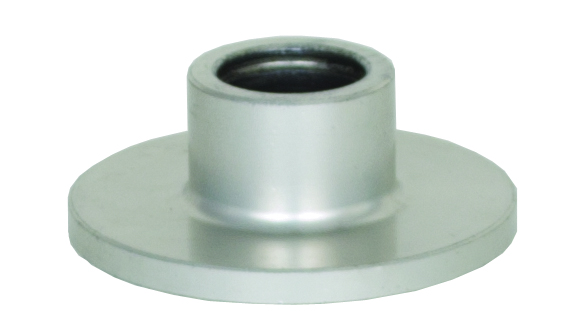

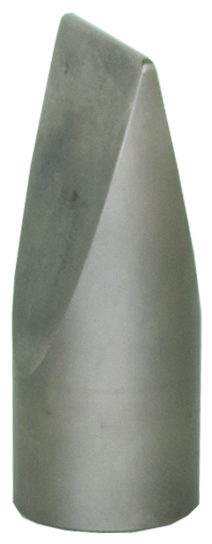

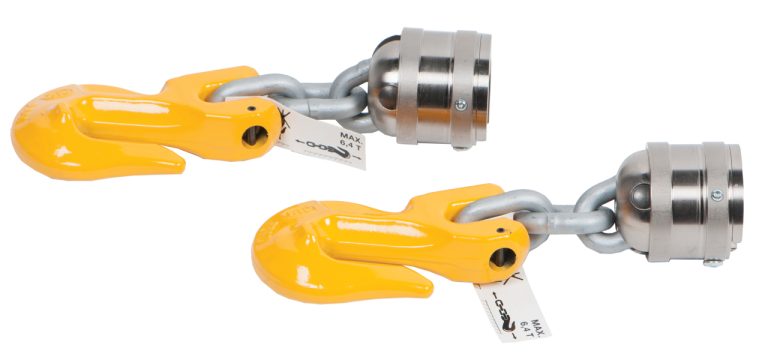

Snap-lock system for accessories
- Changing of accessories within seconds, without the use of tools

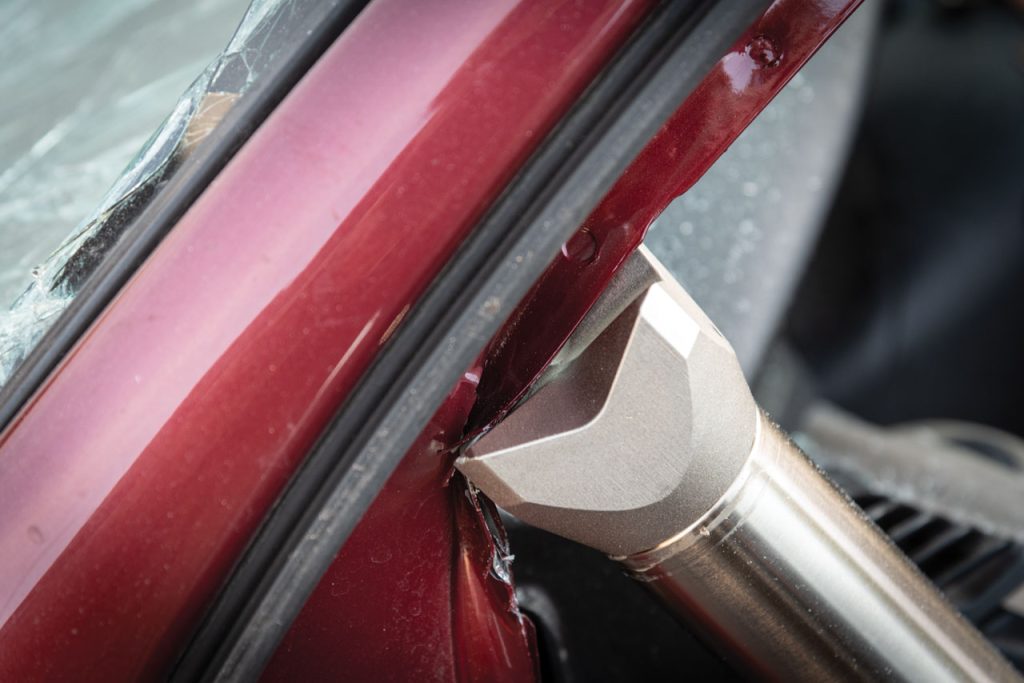

Rotating cross heads with improved, precision cast profile
- Easy positioning and perfect grip in any situation
Ergonomic carrying handle
- New handle design for easy carrying
- Mounted parallel to tool to limit dimensions
Integrated LED lighting
- Illumination of both the plunger and the base side of the ram (4 LED lights in total)
- You can start right away, both during the day and at night, without working in your own shadow
New control handle
- Improved ergonomic design, offering better grip for optimal tool control

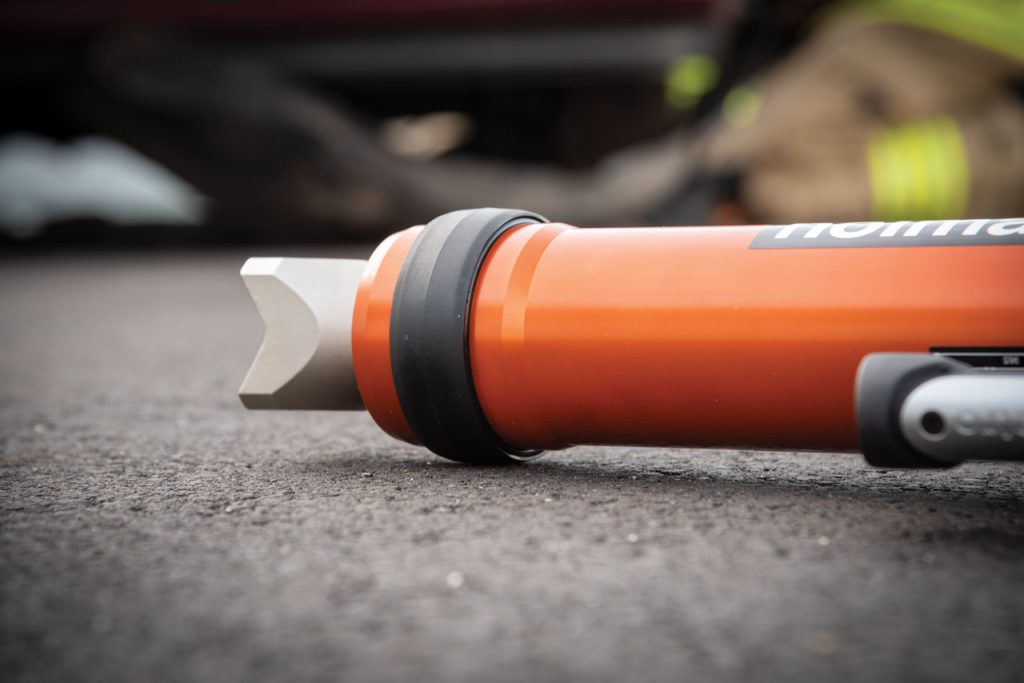

Protective strips on housing
- To protect the tool from damage when putting it on the ground
